Modem Router and Switch Guide for Home Networks

What each device does and how they fit together

A modem, a router, and a switch are the three foundational devices in most home networks. Together they translate the internet service you pay for into usable connections for every laptop, phone, smart TV, and smart speaker in your home. According to Modem Answers, understanding these three devices and their roles helps homeowners design networks that scale with your needs.

The modem is the first link to the internet service. It demodulates the signal from your ISP and provides a gateway to your home network. The router is the traffic director; it creates the local network, assigns IP addresses, and routes data between devices. The switch is the port multiplier; when you need more wired connections, a switch expands the number of Ethernet ports without reconfiguring wireless coverage.

In typical setups, the modem connects to an ISP gateway or wall outlet, the router sits behind the modem, and a switch can be added to grow wired device connections in a home office or media setup. Understanding this trio helps you plan where to place each device for performance and easy management.

The role of a modem in your internet connection

The modem is the bridge between your home network and your internet service provider. It converts the signal delivered over coaxial, fiber, or telephone lines into a digital stream that your router can use. In most households today, you’ll encounter a cable modem using a DOCSIS standard or a fiber ONT; each type is designed to work with its specific network.

A modem handles the translation from the outside world to something your home network can understand. If your ISP provides a gateway device, the modem function is integrated, which can simplify the setup but may limit some customization options. Understanding whether your network uses a dedicated modem or a gateway helps you decide if a separate router is worth it.

The role of a router in local network management

The router is the core of the home network’s intelligence. It creates and manages your local network, assigns IP addresses (usually via DHCP), and controls traffic between devices and the internet. A router also functions as a firewall and often provides wireless access. For most homes, a router handles NAT (Network Address Translation) to allow many devices to share a single external IP address while keeping internal traffic organized.

Beyond basic traffic routing, advanced features like guest networks, parental controls, and port forwarding help tailor the network to your family’s needs. The router is where you decide how much of your home is covered by WiFi and how reliably wired devices should communicate with the internet.

The role of a switch and why you might want one

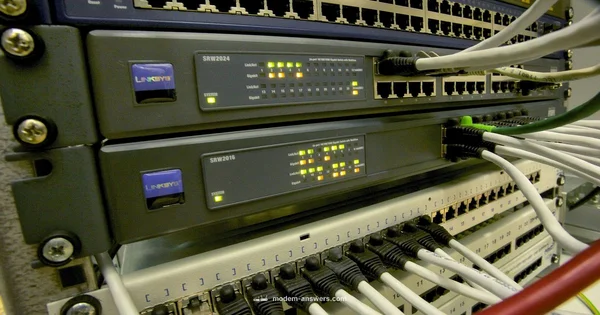

A switch is a simple, reliable way to add more wired ports to your network. If you have multiple desktops, gaming consoles, network storage, or smart home hubs that benefit from stable Ethernet connections, a switch is a cost effective solution. Switches come in unmanaged and managed varieties; unmanaged switches are plug‑and‑play, while managed switches offer features like VLANs and QoS for more complex networks.

For many households, a switch lands somewhere between the router and the wired devices, providing additional ports without altering the WiFi network. This separation can improve reliability for high‑bandwidth devices and reduce congestion on the wireless channel by moving some traffic to a dedicated wired path.

Different setups: one device versus separate devices

Many ISPs offer a modem-router combo that combines two functions into a single box for simplicity. This can be convenient for small apartments or users who want fewer devices to manage. However, for larger homes or performance‑driven networks, using separate devices—modem, router, and an optional switch—often yields better coverage, more configuration options, and easier scalability.

If you do opt for a separate setup, you can place the modem near the entry point, the router in a central location for even WiFi coverage, and the switch close to areas with multiple wired devices. In some cases, enabling bridge mode on a gateway device can simplify traffic management when you prefer a dedicated router.

Configuration steps for a reliable network

Start by mapping your space and listing where wired devices will live. Update firmware on all devices first, then configure the router with a strong admin password and the latest security settings (prefer WPA3 when available). Set up your wireless network with a unique SSID and password, and consider a guest network for visitors.

If you use a modem with bridge or passthrough mode, do so only if you intend to run your own router. Place the router centrally, away from obstructions, and select channels with minimal interference. Finally, connect the switch to the router and verify all wired devices see stable connections. Regular maintenance—firmware updates and occasional reboots—helps keep performance strong.

Troubleshooting common issues

Double NAT occurs when both the modem gateway and the router perform NAT, which can cause connectivity issues for some applications. In most cases, placing the gateway in bridge mode and using a single router resolves this. IP conflicts can happen if two devices try to use the same address; ensure DHCP is configured only on your router or set static IPs carefully.

If a device doesn’t appear on the network, check cabling, confirm the device is powered, and verify that the correct ports are active on the switch. Firmware updates fix known bugs and add security improvements; keep all devices updated and reboot periodically to complete updates.

Maintenance and security best practices for modem router and switch

Keep firmware current on all devices, and use strong, unique passwords for admin and WiFi networks. Enable a guest network for visitors and disable remote management unless you really need it. Regularly review connected devices and remove any you don’t recognize. Consider network segmentation to protect sensitive devices like work computers or smart home hubs, and plan for future upgrades as technology evolves.
