Ethernet Switch for Modem: A Practical Guide

What is an Ethernet Switch for Modem and When to Use It

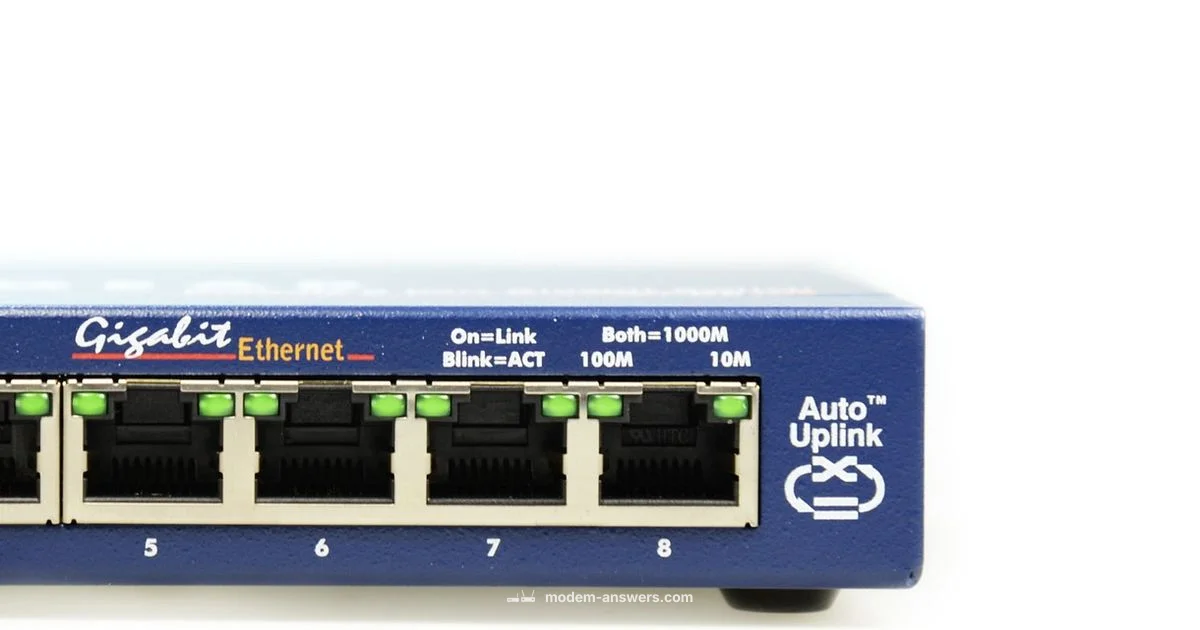

An ethernet switch for modem is a simple, purpose built network device that increases the number of hard wired connections in your home. By connecting the switch to a modem or gateway, you can share a single internet connection with multiple devices such as desktops, laptops, gaming consoles, printers, and smart TVs without relying on wireless throughput alone. In practice, a small unmanaged switch is often all a busy household needs.

Use cases vary. If your modem or gateway has only one Ethernet port and you regularly work from a wired workstation, or you want a reliable wired connection for a game console or streaming box, a switch makes sense. If you already have a router or gateway with multiple LAN ports, a switch can still help you tidy cables and expand wired coverage in living rooms, home offices, or a dedicated entertainment area. Regardless of your layout, the goal is to reduce bottlenecks caused by overcrowded Wi Fi or a single Ethernet port that must share across many devices.

Switch vs Router vs Modem: Clearing Up the Roles

To understand where a switch fits, it helps to know the roles of the three core devices in most homes. The modem connects you to your internet service provider and translates the signal from the outside world. The router (or gateway) creates your local network, assigns local IP addresses, and handles traffic between devices and the internet. The ethernet switch adds more wired ports for devices to connect to the existing network without adding routing logic. In practice, most homes connect a router to the modem, and then add a switch to extend the router’s wired reach. If you have a gateway that includes built‑in routing, the switch simply expands physical ports rather than building a second network.

Having this distinction helps you decide when a switch is truly beneficial and when you should upgrade other parts of the network. For example, if you need a dozen reliable wired connections for a home office, a switch can be a cost‑effective solution after you confirm your router has spare LAN capacity. If you’re unsure, a modest unmanaged switch is a safe first step that won’t disrupt existing configurations.

Choosing the Right Switch for Your Home Network

When selecting an ethernet switch for modem, focus on simple, future‑proof options that fit your current and anticipated needs. Start with an unmanaged switch if you just need extra ports and straightforward operation. For homes with advanced networking demands, consider a managed switch that supports VLANs, QoS, and monitoring. Important factors include port count, speed, and form factor:

• Port count: 4, 8, 16 ports are common. If you plan to connect multiple desktops, game consoles, printers, and smart devices, 8 ports or more is a comfortable starting point.
• Speed: Gigabit Ethernet (1 Gbps) is the standard for modern devices. If you have older equipment, ensure the switch is backward compatible with 10/100 Mbps inputs.
• Unmanaged vs managed: Unmanaged is plug‑and‑play with no configuration; managed provides granular control over traffic, VLANs, and security. PoE is a consideration if you plan to power devices like access points or cameras directly from the switch.
• Build quality and warranty: Look for a sturdy metal chassis for longer life and a warranty that matches your expectations.
• Energy use and size: Smaller, energy efficient models fit homes with limited space and long uptime requirements.

Choosing a switch that matches your router’s performance will prevent bottlenecks. In most homes, a simple 5 to 8 port Gigabit unmanaged switch is enough to unlock several wired connections without new complexity. If you anticipate growth or need traffic control features, plan for a managed solution in the 8–16 port range.

How to Set Up an Ethernet Switch with a Modem or Gateway

The exact steps depend on whether you have a separate router or a gateway that combines routing and modem functions. In a typical setup where a router sits between the modem and the switch, connect the router’s LAN port to the switch’s uplink port (often port 1). Then connect devices to the switch’s remaining ports. If your modem is a standalone unit without built‑in routing, you should place a router between the modem and the switch to handle DHCP and firewall duties. If you are using a gateway with built‑in routing, you can still add a switch to expand wired coverage without altering the gateway’s routing role.

Cable quality matters. Use at least Cat5e or Cat6 Ethernet cables to ensure stable speeds, especially for gaming or 4K streaming. Modern NICs and switches support auto MDI‑X, which means you rarely need crossover cables anymore. If you plan to segment traffic or run more complex networks, a managed switch can provide VLANs and QoS rules to prioritize gaming or video conferencing.

Basic steps:

1. Confirm your router has an available LAN port for uplink. 2) Connect router to switch with a solid Ethernet cable. 3) Plug devices into the switch and verify link lights. 4) If you do not have a spare router, consider enabling bridge mode on the gateway if your ISP supports it to use a dedicated router and a switch for expanded wired access. 5) Test a few devices to confirm consistent speeds across ports.

Common Pitfalls and How to Avoid Them

Even a simple switch can cause headaches if you overlook a few details. A common pitfall is assuming a switch will replace a router. A switch cannot assign IP addresses or manage network traffic without a router or gateway. If devices show limited connectivity after installation, verify the router’s DHCP server is active and that devices are obtaining IP addresses on the correct subnet. Another issue is using too many daisy‑chains, which can introduce latency; if possible, keep the switch directly connected to the router rather than chaining switches. Using the wrong type of cable or neglecting to verify gigabit capabilities can throttle performance, especially for gaming or media streaming. Finally, forgeting to keep firmware up to date on your switch can leave security gaps and misconfigurations.

To avoid these issues, start with a simple setup: router to switch, then wired devices. Check link lights and ensure connected devices receive IP addresses. If you need more control, upgrade to a managed switch and configure VLANs or QoS for critical devices. Regularly review firmware updates from the manufacturer and schedule periodic checks of your local network topology to maintain performance.

Real World Scenarios and Cost Considerations

Many households find that a modest 5‑ to 8‑port Gigabit unmanaged switch rapidly pays for itself by stabilizing wired connections. In a small apartment with a gateway, a switch lets you place a desktop, gaming console, and smart TV on wired links without crawling over coaxial or powerline adapters. In a home office, a switch can take a pair of laptops, printers, a NAS drive, and a conference room PC offline from Wi Fi interference for more reliable work sessions. Price ranges for consumer switches vary with port count and features. You can typically find a reliable 5‑port model in a budget range, with premium models offering better materials, warranty, and managed features.

As for ongoing value, a switch’s longevity is tied to build quality and the environment. A well‑ventilated, dust‑free cabinet or shelf reduces the risk of overheating. If your needs grow—such as adding cameras, access points, or more workstations—you can transition to a larger managed switch with VLAN capabilities without replacing everything in your network.

Maintenance and Longevity

Like any network device, a switch benefits from regular maintenance even though it usually runs in the background. Keep it in a cool, dry place to maximize hardware lifespan, and avoid stacking multiple power supplies if the device’s manual recommends a single supply. Periodically check cabling for wear or looseness, especially if you have active gaming or streaming devices pulling high bandwidth. Firmware updates are important for security and performance; monitor the manufacturer’s site for new releases, and apply updates following best practices. If you upgrade your router or add new network equipment, verify that the switch continues to provide clean, stable connectivity across all endpoints. In most homes, a basic unmanaged switch remains a low‑effort, high‑value upgrade for several years.

Authority sources

• Authority sources include industry standard references to home networking and Ethernet technology. For more background, see FCC guidance on home networks, IEEE standards on Ethernet, and vendor explanations for how switches extend wired connectivity. See: FCC.gov, IEEE.org, Cisco.com.

Authority sources

• FCC.gov on home networking basics
• IEEE.org standards for Ethernet (802.3)
• Cisco.com what is a network switch
