Can You Connect Directly to a Modem? A Practical Guide
Learn how to connect a device directly to a modem, when it’s appropriate, and how to configure bridge mode, IP addressing, and security. A clear, step-by-step guide from Modem Answers for homeowners and renters.
This guide explains how to connect a device directly to a modem and when it’s appropriate. You’ll need a computer or device with an Ethernet port, a standard Ethernet cable, and a modem that supports direct connections or bridge mode. Expect NAT and firewall considerations when bypassing a router. We’ll also cover safety, IP addressing, and troubleshooting.
Can you connect directly to modem? what it means for home networks
The question can you connect directly to modem is common for troubleshooting, testing, or when you want a single device to have a direct link to your internet service. In practice, a modem bridges the service from your ISP to a local network, and a router typically handles multiple devices, NAT, and Wi-Fi. If you connect directly to the modem, you bypass that router layer for the connected device, which can simplify testing or improve a wired single-device performance. According to Modem Answers, the direct approach is feasible only if your modem offers a bridged mode or is explicitly designed to support direct connections. This setup can illuminate whether issues are rooted in the router, the modem, or the service itself. It can also expose the connected device to public IP addressing or require manual network configuration, which is why it’s essential to understand the security implications and ISP policies before proceeding. In short, direct modem connections are a specialized tool for network diagnostics and specific use cases, not a replacement for a typical home network.
How this setup changes the network landscape compared to using a router
When a router sits between your devices and the modem, it creates a local network, assigns private IPs via NAT, and provides a firewall, Wi‑Fi coverage, and device management features. Directly connecting a device to the modem eliminates NAT and many firewall protections for that device, giving it a potentially faster, single-path route to the internet but exposing it to broader network visibility. A router is typically the best option for home networks because it protects devices and enables multiple wired and wireless connections. The direct approach is most useful for testing, diagnosing a faulty router, or running a single device in bridge mode where the modem handles routing duties. If you’re contemplating this, ensure you understand how bridge mode affects IP addressing and firewall rules, and remember that some ISPs assign a public IP by design while others rely on CGNAT; your mileage will vary by provider and plan.
When direct modem connections are appropriate
There are several scenarios where can you connect directly to modem makes sense. First, during router failure where you need an operational wired connection for essential tasks. Second, for specific devices that benefit from a direct, low-latency link like a test bench PC or a dedicated game console, where you want to minimize hops. Third, for diagnostic purposes to isolate whether a problem lies with the router or the modem/ISP. Lastly, when testing a new modem or ISP service in bridging mode to check baseline performance before adding a router back into the network. In all cases, you should verify with your ISP whether bridge mode is supported on your equipment and whether you’ll receive a public or private IP when connected directly.
What you can realistically connect directly to your modem
Ideally, you connect a device with a reliable Ethernet NIC (Network Interface Card). If you have a laptop or desktop, use a standard RJ-45 Ethernet cable to link it to the modem’s Ethernet port. Some devices without a built-in Ethernet port can use a USB-to-Ethernet adapter; ensure the adapter is compatible with your operating system. It’s important to check that the modem supports direct connection or bridge mode, as many consumer modems are designed to hand off routing duties to a separate router. If the modem is configured for bridge mode, your connected device will typically obtain a public IP or a directly routable address, depending on ISP configuration. Always disconnect other devices during testing to avoid conflicting IP assignments.
Step-by-step scenario: direct connection to a modem with a PC
This section demonstrates a practical scenario for a PC. You’ll connect the PC to the modem with an Ethernet cable, enable bridge mode if available, set the PC to obtain an IP address automatically, power cycle the devices, and verify connectivity with a basic ping test. This layout helps you determine whether issues are router-related or originate from the modem or service. Remember that in direct mode, the PC may have exposure to external traffic, so proceed only if you understand the security implications and have a firewall in place.
IP addressing, NAT, and firewall considerations when connected directly
Directly connecting a device to a modem can switch IP addressing from a private, NATted range to a public or bridged setup. This requires either static IP configuration or DHCP from the modem, depending on ISP and device capability. NAT is typically provided by the router; when bypassed, you’ll bypass NAT for the connected device, which alters how inbound connections behave. Firewalls still apply, but you may be exposed to unsolicited traffic. If you’re not familiar with IP settings, use DHCP first to see what IP the device receives, then switch to a static address only if needed and only with documentation of the gateway, subnet mask, and DNS servers.
Troubleshooting common issues with direct modem connections
If you can’t reach the internet after connecting directly to the modem, start with a power cycle: reboot the modem first, then the connected device. Check the modem’s status lights for a link, data, and activity indicators. Confirm that bridge mode or direct-connect settings are enabled in the admin interface. If you still see issues, verify that the device’s network adapter is enabled and set to obtain IP automatically, or configure a valid static IP within the correct subnet. If your ISP uses CGNAT, you may not get a public IP regardless of the direct connection. In that case, bridging your modem and using a dedicated router remains the recommended path.
Security and privacy considerations for direct cable connections
A direct connection reduces some layers of protection provided by a router, so you must ensure the connected device has its own firewall and up-to-date security software. Disable universal Internet exposure unless you explicitly require inbound access, and avoid using direct mode for devices that handle sensitive data on a daily basis unless you implement strict access controls. Always change default credentials on devices exposed to public networks and monitor for unusual traffic. If you’re uncertain, revert to a standard router setup and consult Modem Answers guidance on secure configurations.
Tools & Materials
- Ethernet cable (Cat5e or Cat6, length sufficient to reach modem)(Prefer shielded, at least 1.5 meters to accommodate typical home layouts)
- Device with Ethernet port (PC, laptop, or network tester)(If your device lacks RJ-45, use a USB-to-Ethernet adapter that supports your OS)
- Modem with bridge mode or direct-connect capability(Check user manual or ISP support page for bridge mode instructions)
- Administrative access to the modem (username/password)(Needed to enable bridge mode or adjust connection type on many modems)
- Printer or notebook for note-taking(Helpful for recording IP settings, gateway, and DNS values)

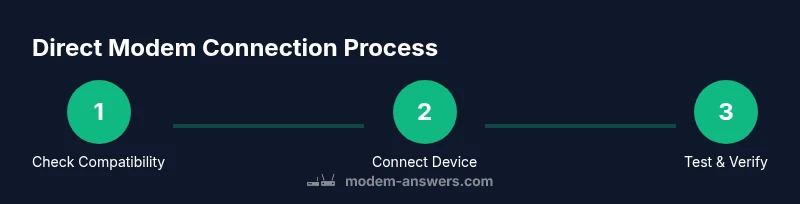

Steps
Estimated time: 15-30 minutes
- 1
Verify compatibility and access
Confirm with your ISP that bridge mode or direct connection is supported on your modem. Gather the required items and ensure you have the admin credentials if needed. This step reduces surprises later.
Tip: If your modem lacks bridge mode, your direct connection may still be possible using a DMZ or public IP configuration—check the manual. - 2
Power down and disconnect existing equipment
Turn off the modem and any connected router or switches. Unplug them from power and wait 30 seconds to clear residual memory. This prevents IP conflicts when you reconnect.
Tip: Label cables if you’re testing multiple configurations to avoid reconnecting devices in the wrong place. - 3
Connect the PC to the modem with Ethernet
Plug one end of the Ethernet cable into your PC’s NIC and the other into the modem’s LAN port. Ensure the connection is snug and check the link/activity LED indicators on the NIC and modem.
Tip: Use a direct, single cable to avoid mass-cable interference; keep the path clear of power cables. - 4
Enable bridge mode or direct-connect on the modem
Access the modem’s admin interface using the default gateway address, then enable bridge mode or a direct connection mode. If enabled, the modem will bypass routing duties for the connected device.
Tip: If you can’t find a bridge option, consult the ISP or try a reset and reconfiguration sequence; some devices require a technician for full bridge setup. - 5
Power cycle the devices in the correct order
Power on the modem first, wait 60 seconds for it to initialize, then boot up the connected PC. This helps to obtain a fresh IP lease and stable connection.
Tip: Avoid turning devices on in quick succession; a brief pause ensures clean handoffs. - 6
Configure IP addressing on the PC
Set the PC to obtain an IP automatically or assign a static IP within the modem’s subnet if required by your ISP. Enter gateway and DNS if you use a static setup.
Tip: Start with DHCP; only move to static IP if you need a fixed address for testing or service requirements. - 7
Test connectivity and document results
Run a basic ping to the gateway and a speed test to verify internet access. Record the IP address received and note latency and stability.
Tip: If ping fails, recheck the bridge settings and ensure no firewall is blocking ICMP traffic on the PC. - 8
Plan for subsequent security measures
Because direct connections bypass router protections, consider reintroducing a router with updated firmware for ongoing use, or implement robust host firewall rules and routine monitoring.
Tip: Maintain a clear recovery plan to revert to a standard home network if issues arise.
FAQ
What is the difference between bridging and connecting directly to a modem?
Bridge mode makes the modem act as a pure modem, allowing a connected device to handle routing. Direct connection bypasses most router features entirely. Bridging is safer for home networks because it preserves some management capabilities.
Bridge mode makes the modem pass routing duties to your device. Direct connection bypasses router features entirely, which is faster but less secure.
Will I get a public IP when connected directly to my modem?
It depends on your ISP and the modem. Some ISPs assign a public IP in bridge mode; others keep CGNAT or assign private IPs. Check with your provider before testing.
A public IP depends on your ISP configuration and whether bridge mode is used.
Is it safe to run a single device directly from the modem?
There is a higher exposure risk without router firewall. Ensure the device has strong security software and a configured firewall. If you’re unsure, revert to a router-based setup.
It’s riskier because there’s less protection; use strong security measures or revert to a router.
What should I do if bridge mode isn’t available on my modem?
If bridge mode isn’t available, a direct connection may still work with ISP guidance, but you’ll lose some management features. Consider using a dedicated router with updated firmware.
If bridge mode isn’t available, you may need a router to manage NAT and protections.
Can I reconnect a router later without losing settings?
Yes. Power off all devices, reconnect the router between the modem and devices, and restore previous network settings. Some modems reset to defaults after a bridge change, so verify after reconfiguration.
Yes, just reintroduce the router and reconfigure as needed.
What are common symptoms when a direct connection is misconfigured?
No internet, IP conflicts, or unexpected IP addresses are common issues. Check bridge mode status, reset the modem, and verify that the connected device gets an IP in the correct range.
No internet or IP address problems are common if misconfigured.
Watch Video
Key Takeaways
- Can you connect directly to a modem? Yes, but only with compatible hardware and proper configuration.
- Bridge mode or direct-connect settings are essential to make this work safely.
- Direct connections change IP addressing and reduce router-level protections; security measures are crucial.
- Test thoroughly and have a rollback plan to return to a standard home network.
- Consult Modem Answers guidance and ISP documentation when in doubt.
