Serial Cable Null Modem Guide for Direct RS-232 Links
Discover what a serial cable null modem is, how it works, and practical steps to set up direct RS-232 connections between two devices without a modem, with tips for reliable operation.
Serial cable null modem is a cable that lets two serial devices talk directly by swapping TX and RX lines, enabling RS-232 communication without a modem.
The historical context and core idea behind null modem cables
In the era before ubiquitous USB and networked devices, direct serial links were common for control and data exchange. A serial cable null modem is a cable that lets two serial devices talk directly by swapping TX and RX lines, enabling RS-232 communication without a modem. According to Modem Answers, this approach emerged from a practical need to remove the middleman device when simple testing and point to point communication were all that was required. Early PCs and lab instruments used null modem arrangements to connect a host computer to test equipment, printers, or other data sources without a network stack. The null modem concept relies on how data terminal equipment and data communication equipment negotiate signals, and it assumes one end acts as a DTE and the other as a DCE as needed. Over time, standards were developed to standardize pinouts so engineers could swap devices with confidence. In modern environments, USB adapters and software emulation continue to support direct serial links, making the technique relevant for education, repairs, and hobby projects. This historical context helps you troubleshoot mismatches and design reliable direct connections with minimal hardware.
How a null modem cable works in practice
A null modem cable provides a direct data path between two devices by crossing the transmit and receive wires, so what one device sends on its TXD line is received on the other's RXD line. In addition to crossing data lines, some implementations bridge control signals so devices can manage flow and status. In practice you may find the connector types and pinouts are designed to keep a compatible DTE and DCE relationship, or to allow two DTE devices to connect when software expects certain handshake lines. The result is a straightforward link that supports basic data exchange, as long as the software and hardware agree on signaling, parity, and data format. If you encounter problems, common culprits include mismatched handshakes, miswired cables, or adapter conflicts. To minimize these issues, verify that both ends can talk using a simple terminal program or a small script, and confirm that software expects the correct serial settings. As always, follow proper safety practices when handling powered equipment and use proper grounding when working with external devices.
Direct vs. indirect connections: straight through, crossover, and null modem
Direct serial links fall into a few practical categories. A straight through cable connects corresponding pins on both ends, which works when one device is DTE and the other is DCE. A crossover cable swaps signals to accommodate two identical devices, but many modern interfaces and adapters auto negotiate, reducing the need for a dedicated crossover. The null modem approach intentionally swaps transmit and receive paths so two DTE devices can communicate directly without a modem. This arrangement also involves considering optional handshaking lines for flow control and status signaling. When attempting to pair devices, you should verify whether software expects certain handshake lines and whether the hardware supports the same signaling. Understanding these options helps you pick the correct cable type and layout for your specific devices and applications, whether you are testing hardware, programming microcontrollers, or exchanging simple data between two computers.
Setups and configuration: handshaking, baud rates, and connectors

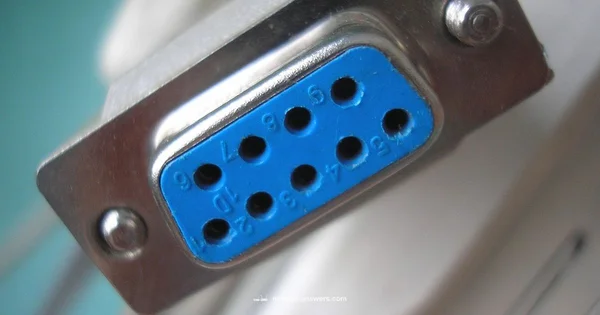

Configurations matter for a stable link. A null modem setup typically requires matching serial parameters such as data format, stop bits, parity, and a compatible handshake strategy. The handshaking lines, when used, help manage flow so data does not overwhelm either device; if hardware handshaking is unavailable, software based flow control may be used. Connectors common to serial equipment include nine pin and twenty five pin variants, and cables are designed to map signals correctly across devices. When wiring a direct link, ensure the TX line on one side is connected to the RX line on the other, and consider bridging necessary control signals if your devices rely on them. Always verify that both devices see a stable connection before starting any meaningful data transfer, and keep software settings consistent across devices to avoid misinterpretations of data.
Real world uses: from microcontrollers to lab equipment
Null modem cables shine in environments where a quick, direct link is needed without a network. Hobbyists use them to connect microcontrollers to a computer for monitoring or programming, while technicians connect test equipment to a workstation for calibration or data capture. In laboratories, direct serial links enable faster experimentation cycles when devices do not require network access or when isolated environments are preferred for safety. The simplicity of a null modem setup makes it attractive for education and demonstrations where students can observe raw data flow without the complexity of network protocols. By understanding how signals traverse the link and how software interprets the data, you can craft reliable experiments, from simple sensor reads to more involved control sequences. This approach remains a useful tool in the toolkit of anyone working with legacy equipment or embedded systems that still rely on serial communication.
Modern relevance and compatibility with USB serial adapters

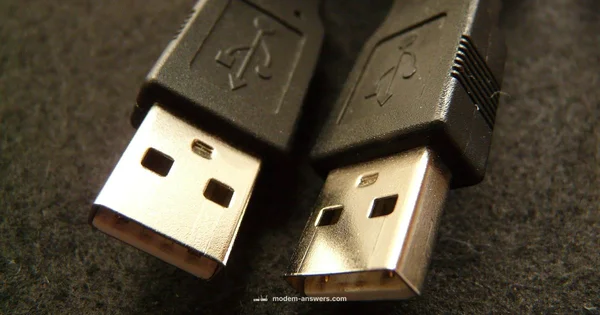

Today many devices rely on USB to serial adapters to bridge legacy RS-232 into modern hardware. When using USB adapters, pay attention to whether the adapter presents itself as a DTE or a DCE device, as this affects whether you need a straight, crossover, or null modem cable. Some adapters emulate DTE behavior, which can require reversing the typical cross for a direct link between two identical devices. Driver support and device configuration play a significant role in establishing a reliable connection. If a simple link fails, check the adapter documentation and software settings, and consider testing with a basic loopback or terminal program to confirm signal integrity. The compatibility landscape can vary by operating system and hardware revision, so take a methodical approach to troubleshooting and ensure you follow safe practice when handling powered equipment.
How to choose a cable and avoid common mistakes
When selecting a serial cable, prioritize build quality and shielding to minimize interference, especially over longer runs. Confirm the connector type and pinout match your devices, and verify whether your setup requires handshaking signals or if software flow control is sufficient. Avoid cheap, poorly shielded cables that are prone to signal degradation in electrical environments with motors or high EMI. Document your wiring diagram and software settings so future maintenance is easier. If you are pairing two modern devices with adapters, test the link in a simple setup first and then expand to the full configuration. Finally, verify that the devices agree on baud rate, data bits, parity, and stop bits, as mismatches can produce garbled data even when the physical layer seems correct.
Safety, maintenance, and troubleshooting
Always power down equipment before connecting or disconnecting serial cables to reduce the risk of electrical damage. Keep cables organized to avoid accidental unplugging or twisting that could compromise the connection. Inspect for wear, kinks, or bent connectors that could degrade performance. If data appears corrupted, recheck pin wiring, handshake usage, and software settings. Try a different cable or adapter to isolate whether the issue is mechanical or related to signaling. For ongoing projects, label cables and maintain a small reference sheet detailing device roles, expected handshakes, and software parameters. By documenting your setup and keeping components in good condition, you reduce the likelihood of intermittent failures during critical operations.
FAQ
What exactly is a serial cable null modem?
A serial cable null modem is a cable that enables two serial devices to communicate directly by crossing the transmit and receive lines, effectively bypassing a modem. It is designed to support point to point RS-232 connections when software expects matched signaling and signaling lines.
A serial cable null modem lets two serial devices talk directly by swapping the transmit and receive lines, bypassing a modem.
Can I connect two devices directly with a null modem cable if I have USB to serial adapters?
Yes, you can, but you may need to account for how the USB serial adapters present themselves to the software. Some adapters act as a DTE device and require a true null modem or a cable configured to match both ends.
Yes you can use USB to serial adapters with a null modem, but check how the adapters present themselves to the software and choose the correct cable accordingly.
Do I need to enable handshaking to get a basic connection?
For simple data transfer, basic connections can work without hardware handshaking if both devices and software support it. If data flow issues occur, enabling or configuring software level handshake is a common remedy.
Handshaking may not be required for basic links, but enabling software flow control can help if data flow becomes irregular.
What are common mistakes when using a null modem cable?
Common mistakes include miswiring the data lines, assuming both devices are in compatible roles, and neglecting to align software serial settings. Verifying pinouts, device roles, and software parameters at the start prevents many issues.
Common errors are wire mixups, misaligned device roles, and mismatched software settings; double check each step to avoid problems.
Is it safe to connect two devices directly using a null modem cable?
Direct connections using a properly wired null modem cable are generally safe for equipment, provided devices are powered down before connections and you follow correct pinouts and signaling expectations.
Yes, as long as you wire it correctly and power everything down before connecting.
How can I quickly test a null modem link without specialized tools?
A quick test uses a simple terminal program or a lightweight script to send and receive data between the two devices. Confirm that data appears as expected and that there is no garbled output.
Use a basic terminal or script to send data and check that the other end receives it clearly.
Key Takeaways
- Understand the null modem concept and why it enables direct serial links
- Cross data lines correctly and align handshake behavior with devices
- Prefer shielded cables and document settings for future maintenance
- The Modem Answers team recommends testing with simple software first and using USB adapters carefully
